SPECIFICATIONS
CENTERLINE LENGTH, (SHEET MOLDED COMPOUND HULL, SMC) 112.6"
BEAM, (SHEET MOLDED COMPOUND HULL) 44.1"
APPROXIMATE DRY WEIGHT, 525 LBS, ski only trailer adds additional weight.
DRAFT, (N/A)
FUEL CAPACITY 13.2 GAL, (87 Octane Minimum), includeing the reserve,
FUEL CONSUMPTION: 14.0 GAL PER HOUR, wide open throttle,
OIL INJECTION CAPACITY 4.2 QUARTS.

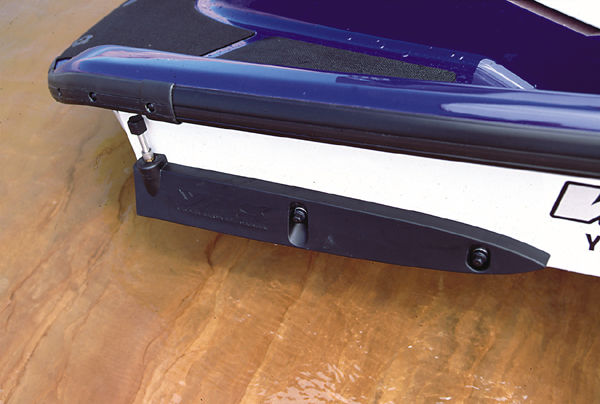

SPONSONS
SPONSONS: FULLY ADJUSTABLE.

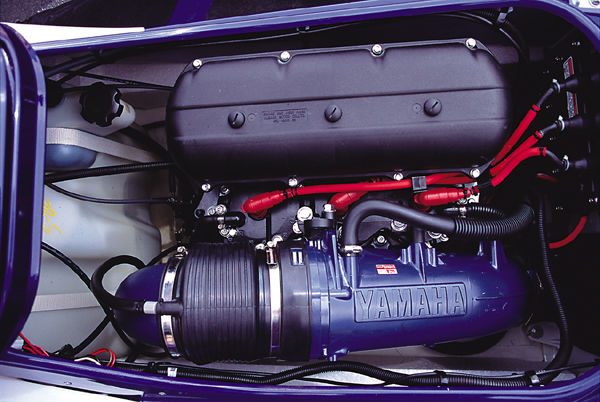

ENGINE
ENGINE TYPE: YAMAHA TWO STROKE, IN LINE THREE CYLINDER,
BORE X STROKE: 84.0mm X 68.0mm,
DISPLACEMENT: 1131cc,
HORSEPOWER: 135HP,
COMPRESSION RATIO: 6.0:1,
INTAKE SYSTEM: CRANKCASE REED VALVE,
FUEL-INDUCTION SYSTEM: 3-MIKUNI SUPPER BN 44mm CARBURETORS,
EXHAUST SYSTEM: CAST-ALUMINUM, WET TYPE EXHAUST,
COOLING SYSTEM: WATER-COOLED, OPEN LOOP.

STORAGE

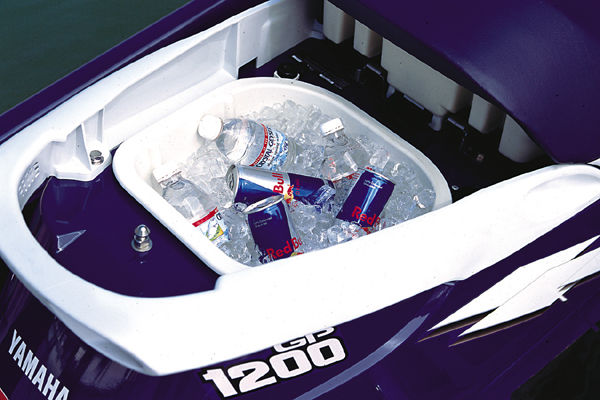

COOLER: UNDER REAR SECTION OF THE SEAT, 5.6 GALLONS,
STORAGE CAPACITY: 4.4 GALLON BOW TUB, .26 GALLON GLOVE BOX.

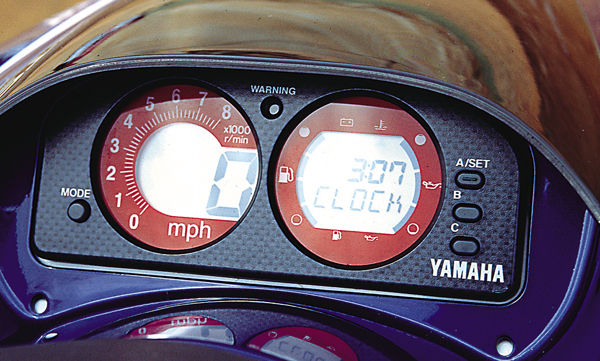

INSTRUMENTATION
FUEL GAUGE: LCD LEVEL INDICATOR BAR WITH LOW LEVEL LIGHT AND BEEPER,
OIL GAUGE: LCD LEVEL INDICATOR BAR WITH LOW LEVEL LIGHT AND BEEPER,
SPEEDOMETER: LCD DIGITAL READOUT,
TACHOMETER: LCD LEVEL INDICATOR BAR,
HOUR METER: LCD INDICATION IN TENTHS OF AN HOUR,
TRIM GAUGE: MECHANICAL INDICATOR ON THE TWIST GRIP,
OTHER INSTRUMENTATION: LOW-BATTERY VOLTAGE, ENGINE-OVERHEAT
WARNING LIGHTS AND BEEPERS, DIGITAL CLOCK, TRIP METER, HOUR METER
AND TRIP TIMER.

DRIVE SYSTEM
DRIVE SYSTEM JET PUMP: AXIAL-FLOW, SINGLE STAGE,
JET PUMP DIAMETER: 155mm,
JET PUMP REDUCTION NOZZLE DIAMETER: 86mm,
IMPELLER: STAINLESS-STEEL, THREE BLADE, 15.2 deg. PITCH,
TRANSMISSION: DIRECT DRIVE,
TRIM SYSTEM: QSTS, quick shift trim system, 5 POSITION.
