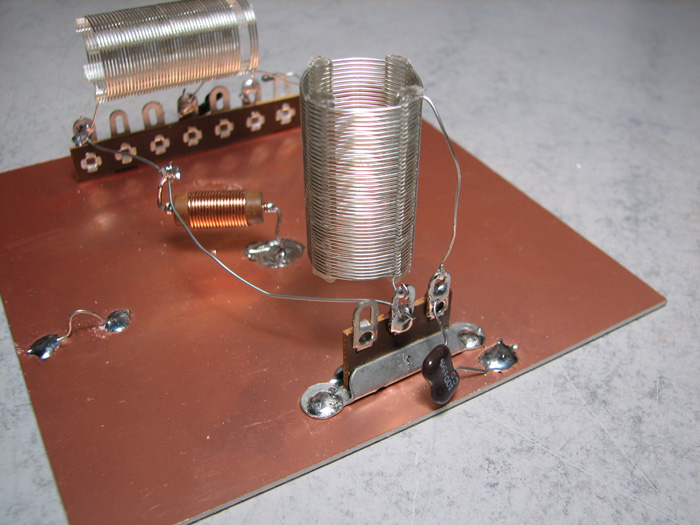

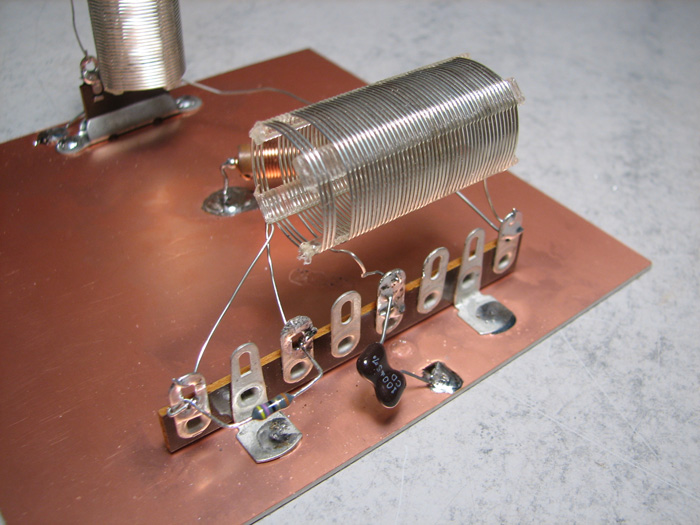

Above is my "breadboard". The coils separated about 4". Here's the input coil & 100 pF cap. |
Here's the output coil & 100 pF cap. There's little chance for coupling across 4" of space. |
![]() |
![]() |
|

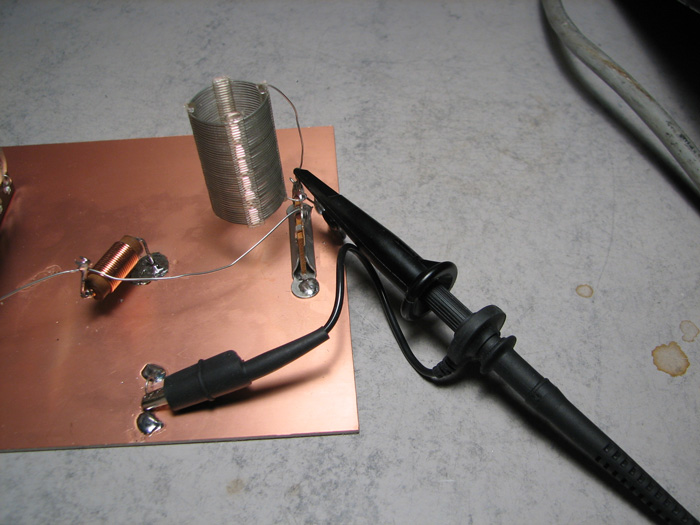

Above is my scope probe connected to the output coil. |

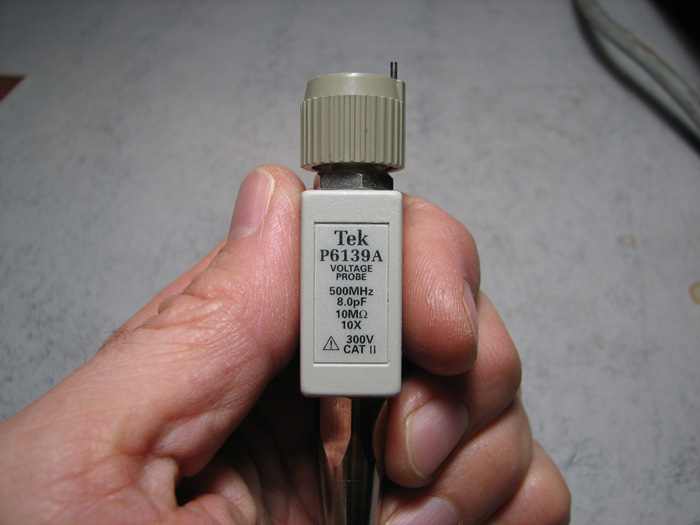

Above is the probe data. |
![]() |
![]() |
|

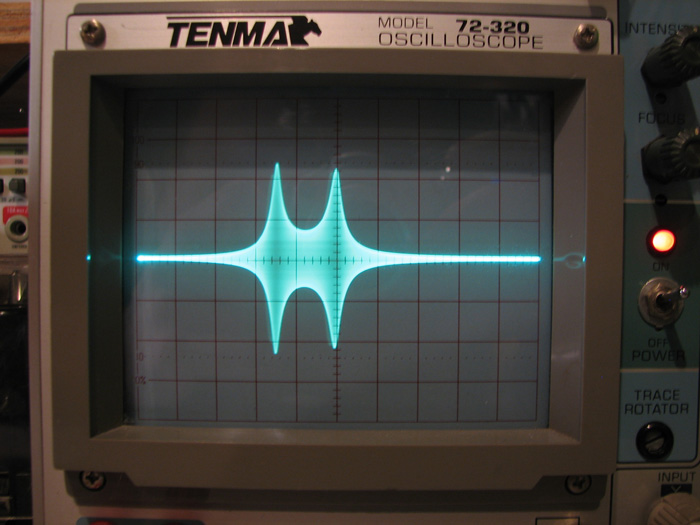

Here are the nasty twin-peaks trace, when sweeping from 3 to 5 MHz. |
Here (above), I've removed the probe and substituted a simple clip-lead & shielded cable. |
![]() |
![]() |
|

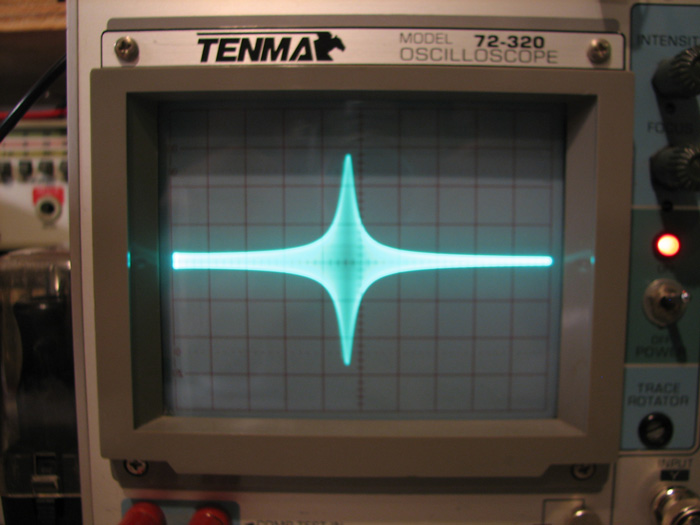

Above is the display generated when using the clip lead and sweeping from 3 to 5 MHz. |

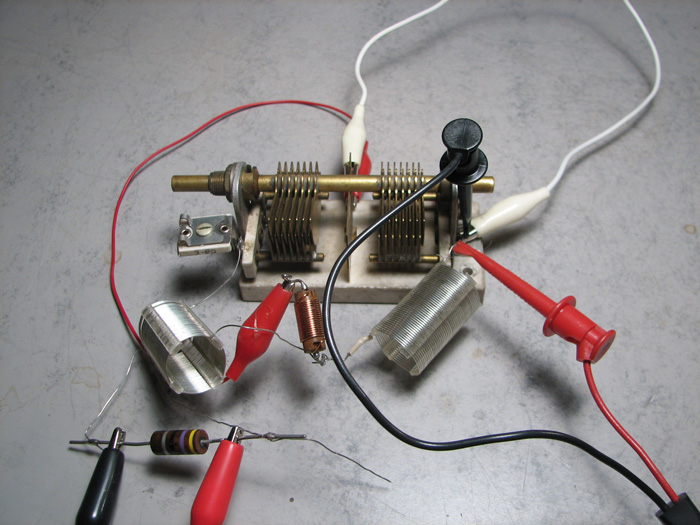

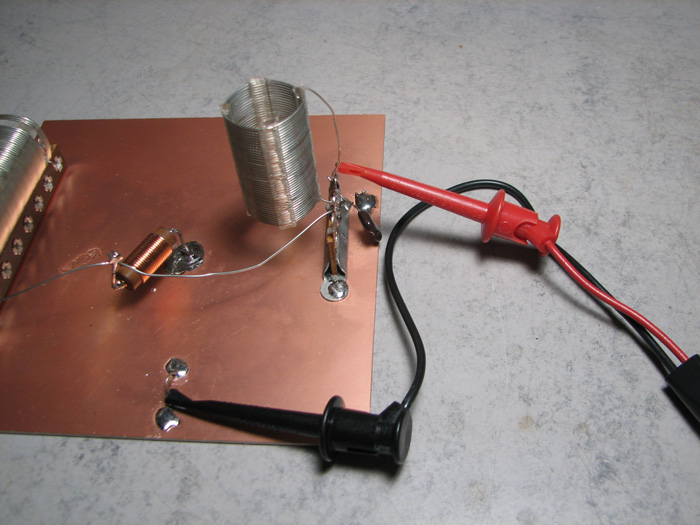

Here is my original sloppy circuit, but this time with the clip lead instead of the scope probe. |
![]() |
|
|

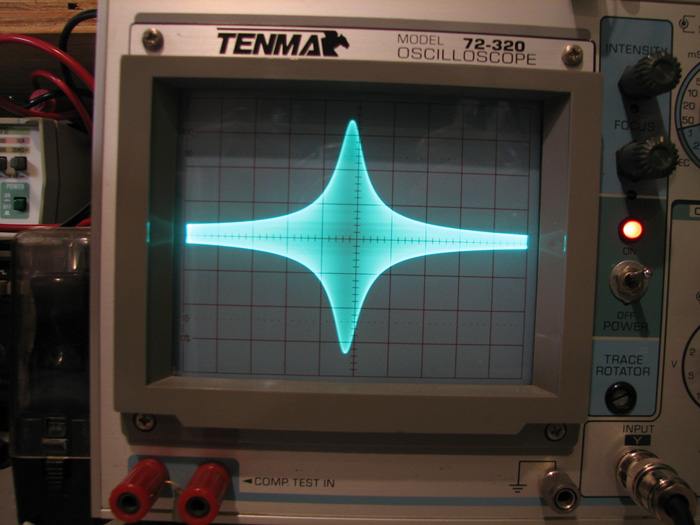

And above is the trace generated with the sloppy circuit & clip lead instead of scope probe. |
